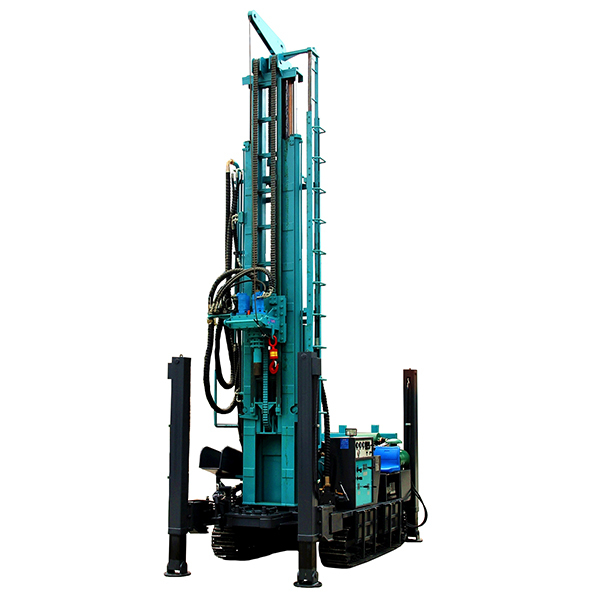

FY380 water well drilling rig
FY380 water well drilling rig features
1. It is an efficient and multifunctional downhole water well drilling equipment, which can be used for drilling water wells, agricultural irrigation wells, ge……
FY380 water well drilling rig features
1. It is an efficient and multifunctional downhole water well drilling equipment, which can be used for drilling water wells, agricultural irrigation wells, geothermal wells, and other kinds of boreholes. It is especially suitable for water extraction projects in mountainous areas and rock formations.
2、The machine can drill in different strata (rock layer, mud layer, sand layer), and the maximum hole diameter can reach 300mm.
3、The machine adopts a high-torque hydraulic motor power head and brand diesel, and the hydraulic control system adopts a large diameter hydraulic cylinder. The brand diesel fuel is protected by a 2-stage air filtration system, or you can use clean air from an air compressor directly.
4、Unique bump design and centralized control of the operating system, easy to maintain and convenient for machine operation.
5、The machine adopts excavator crawler chassis with high off-road performance, and also can be mounted on a truck for more mobility.
6、Two gear rotations and feeding speeds make it work in the soil and rock layer.
Can add dual systems: 1. Air power system with air compressor 2. Mud pump system with mud pump
Technical Parameters:
| The weight（T） | 9.2 | Drill pipe diameter（mm） | Φ89 Φ102 |
| The hole diameter（mm） | 140-325 | Drill pipe length（m） | 1.5m 2.0m 3.0m 6.0m |
| Drilling depth（m） | 380 | Rig lifting force（T） | 24 |
| One-time advance length（m） | 6.6 | Rapid rise speed（m/min） | 20 |
| Walking speed（km/h） | 2.5 | Fast feeding speed（m/min） | 40 |
| Climbing angles（Max.） | 30 | Width of loading（m） | 2.8 |
| Equipped capacitor（kw） | 96 | Hoisting force of winch（T） | 2 |
| Using air pressure（MPA） | 1.7-3.4 | Swing torque（N.m） | 6500-9000 |
| Air consumption（m³/min） | 17-36 | Dimension（mm） | 5950×2100×2550 |
| Swing speed（rpm） | 66-135 | Equipped with hammer | Medium and high wind pressure series |
| The penetration efficiency（m/h） | 15-35 | High leg stroke（m） | 1.6 |
| The engine brand | Yuchai engine ( National III ) | ||
