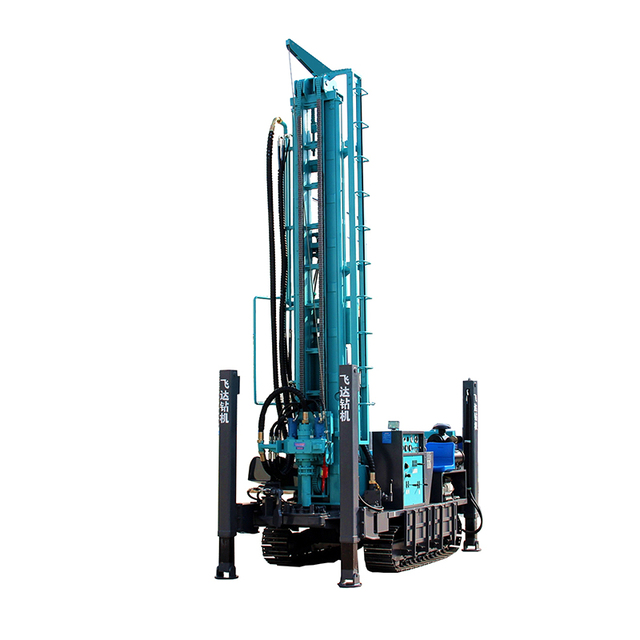

FY280 Water Well Drilling Rig
FY280 water well drilling rig features 1. Equipped with 75KW Yuchai turbocharged engine with strong power.
patented design composite tower with 6.6m strokes, double-cylinder lifting, large tonnage
……
FY280 water well drilling rig features 1. Equipped with 75KW Yuchai turbocharged engine with strong power.
Simple maintenance, low cost
The rod is controlled by hydraulic pressure.
10、The drilling rig travels on a crawler-type self-structure, which is easy to move. Its steel crawler chassis
It is easy to walk in the city and yard and not easy to damage the ground.
Technical parameter:
The weight(T) | 7.6 | Drill pipe diameter(mm) | Φ76 Φ89 |
The hole diameter(mm) | 140-305 | Drill pipe length(m) | 1.5m 2.0m 3.0m |
Drilling depth(m) | 280 | Rig lifting force(T) | 17 |
One-time advance length(m) | 6.6 | Rapid rise speed(m/min) | 25 |
Walking speed(km/h) | 2.5 | Fast feeding speed(m/min) | 30 |
Climbing angles(Max.) | 30 | Width of loading(m) | 2.7 |
Equipped capacitor(kw) | 75 | Hoisting force of winch(T) | 2 |
Using air pressure(MPA) | 1.7-3.0 | Swing torque(N.m) | 4500-6000 |
Air consumption(m³/min) | 17-31 | Dimension(mm) | 5900×1850×2360 |
Swing speed(rpm) | 40-70 | Equipped with hammer | Medium and high wind pressure series |
The penetration efficiency(m/h) | 15-35 | High leg stroke(m) | 1.4 |
The engine brand | Yuchai engine |
Suitable for civil and industrial drilling and geothermal drilling, it has the advantages of large diameter, deep drilling, fast drilling, flexible movement, and a wide range of ap […]
